Product description

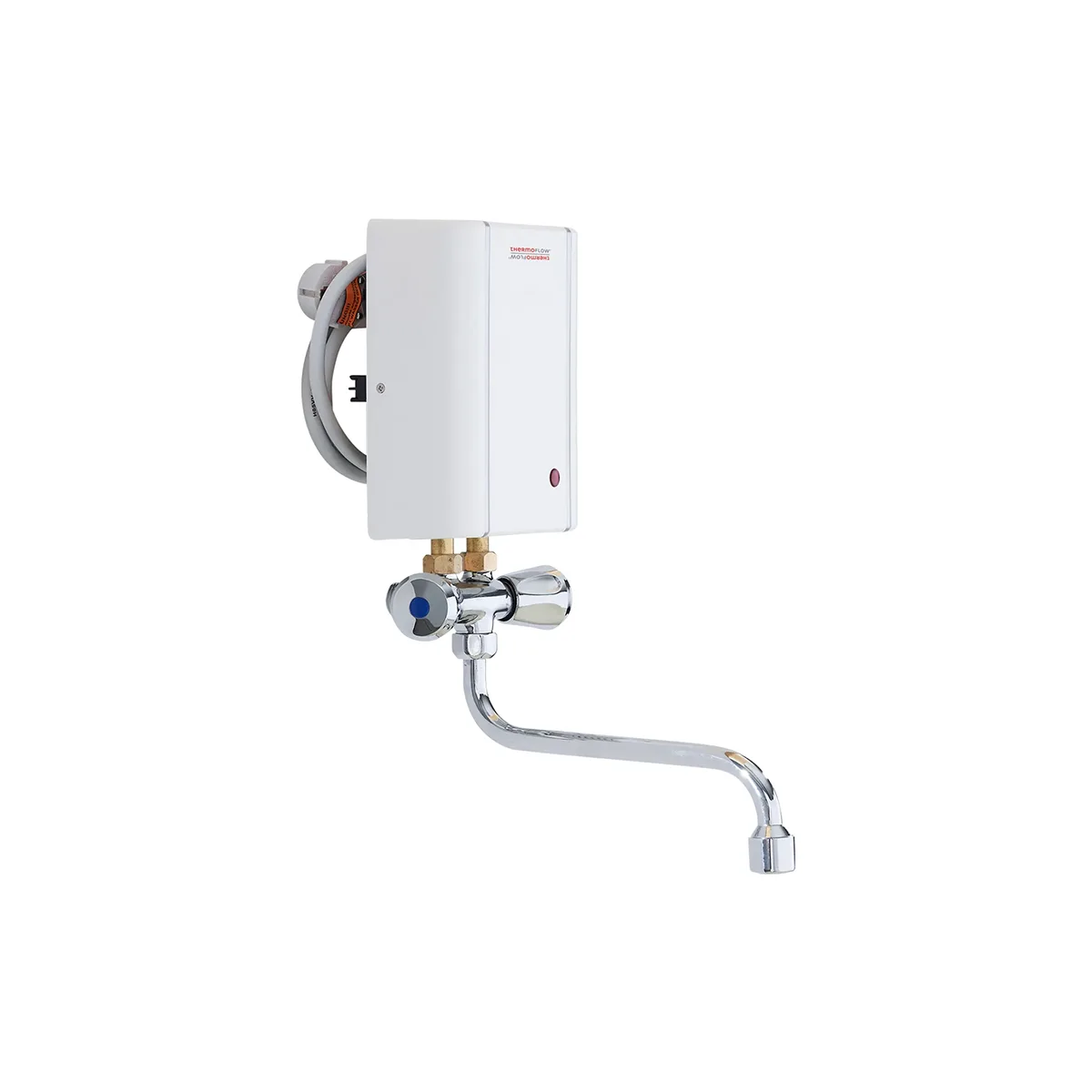

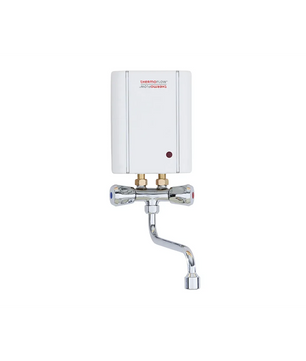

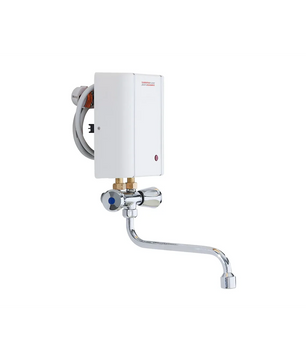

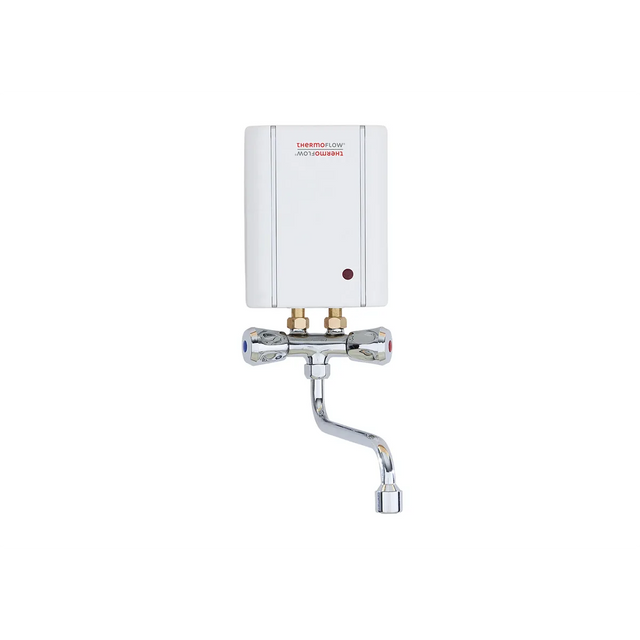

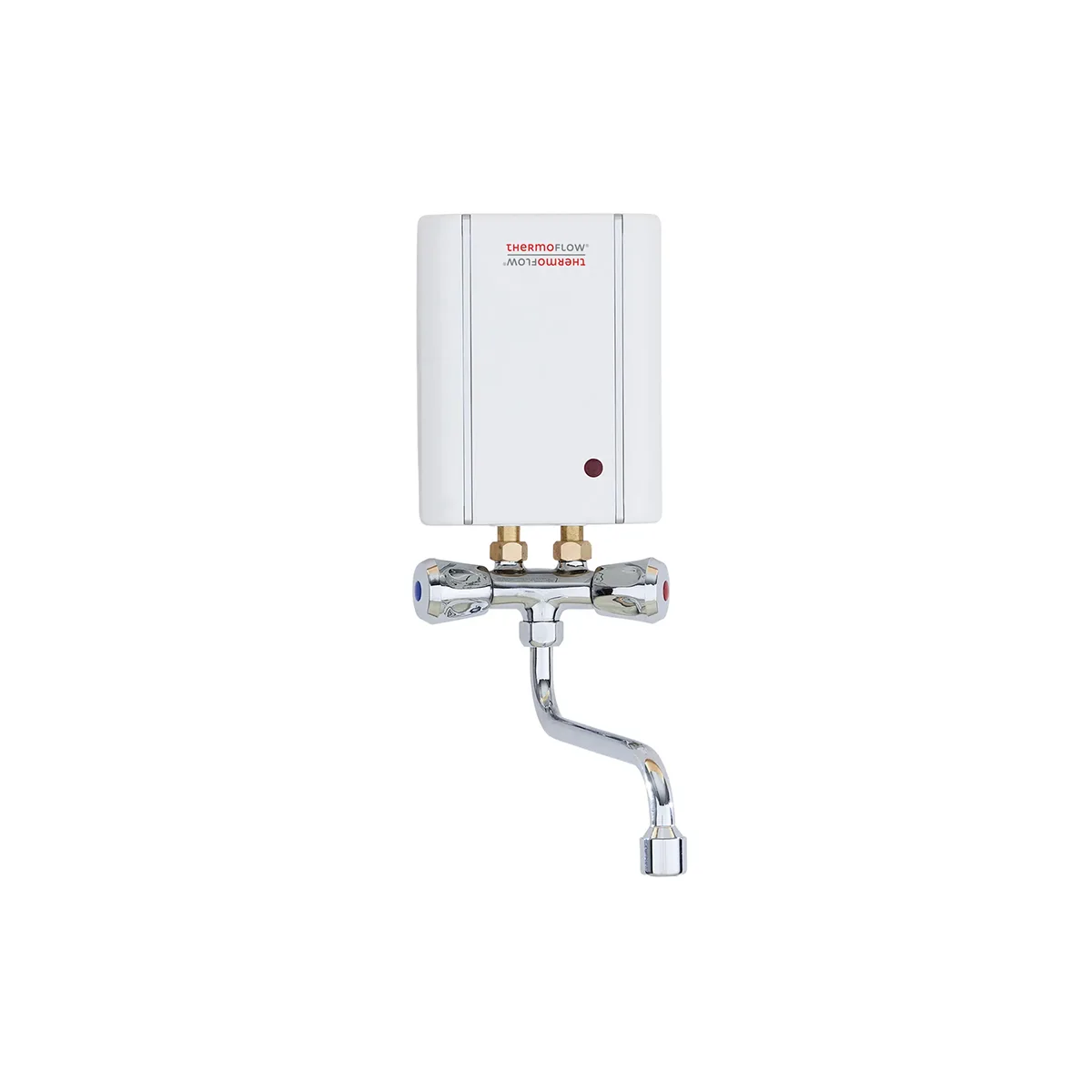

The Thermoflow ELEX 3.5 small instantaneous water heater with fitting (ELEX35ARM) is a compact and efficient solution for hot water preparation at individual taps. Ideally suited for Guest toilet, hand basin, sink or office kitchens, The device delivers hot water quickly and reliably – exactly when it is needed.
With a Power output of 3.5 kW The instantaneous water heater generates approximately 2 liters of warm water per minute (Δt = 25 °C). The integrated Bare resistance heating system ensures a efficient, durable and low-maintenance function. Through the hydraulic control Does the device switch on? automatically when the tap is opened.
Thanks to his compact design can the instantaneous water heater Space-saving, mounted under or above the sink will be. integrated over-temperature protection as well as a Indicator light They increase comfort and safety in daily operation. The right one Low-pressure fitting in chrome is already included in the scope of delivery.
Highlights at a glance
Compact design – ideal for Guest toilets, hand basins or offices
3.5 kW power for fast hot water preparation
Hot water output approx. 2 l/min (Δt = 25 °C)
Bare resistance heating system for efficient and long-lasting use
Hydraulic control with automatic switching on
Flexible assembly – Under- or over-table installation possible
Includes low-pressure fitting (chrome)
Energy efficiency class A (load profile XXS)
Technical data
Model: Thermoflow ELEX35ARM
Rated power: 3.5 kW
Tension: 230 V/50 Hz
Minimum coverage: 15.2 A
Minimum conductor cross-section: 3 × 1.5 mm²

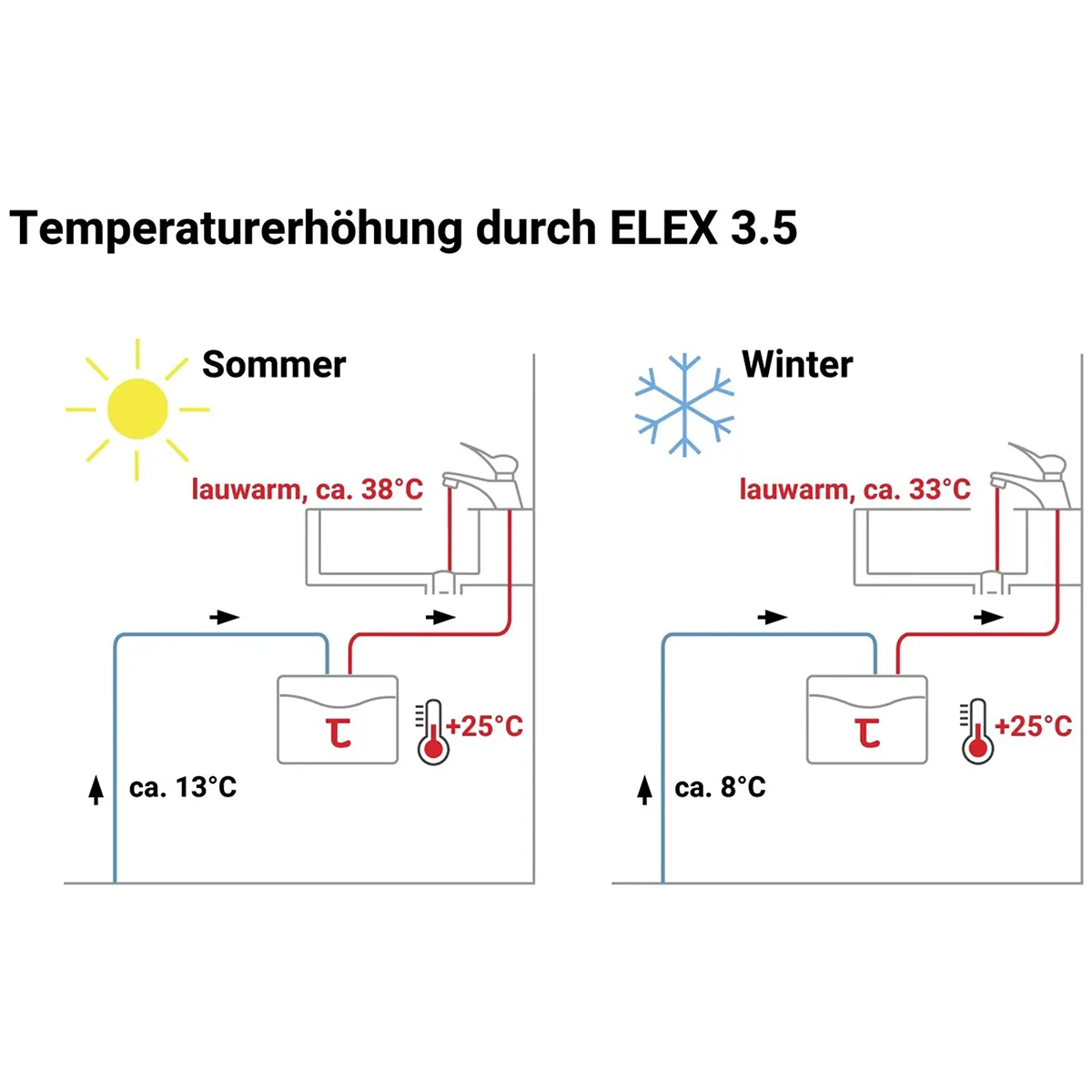

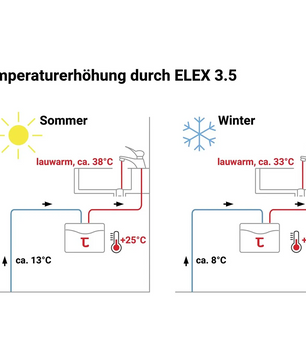

Hot water output: approx. 2 l/min (Δt = 25 °C)
Switch-on quantity: 1.2 – 1.8 l/min
Max. inlet temperature: 28 °C
Minimum flow pressure: 0.05 MPa
Water connection: G 3/8 inch
Protection class: IP24
Protection class: I
Annual electricity consumption: 461 kWh
Daily electricity consumption: 1.263 kWh
Energy efficiency class: A (Load profile XXS)
Dimensions (H × W × D): approx. 16.7–18 × 13 × 6–6.8 cm
Weight: approx. 1.6–1.8 kg
Color: White
EAN: 4260458242742
Scope of delivery
Thermoflow ELEX 3.5 small instantaneous water heater

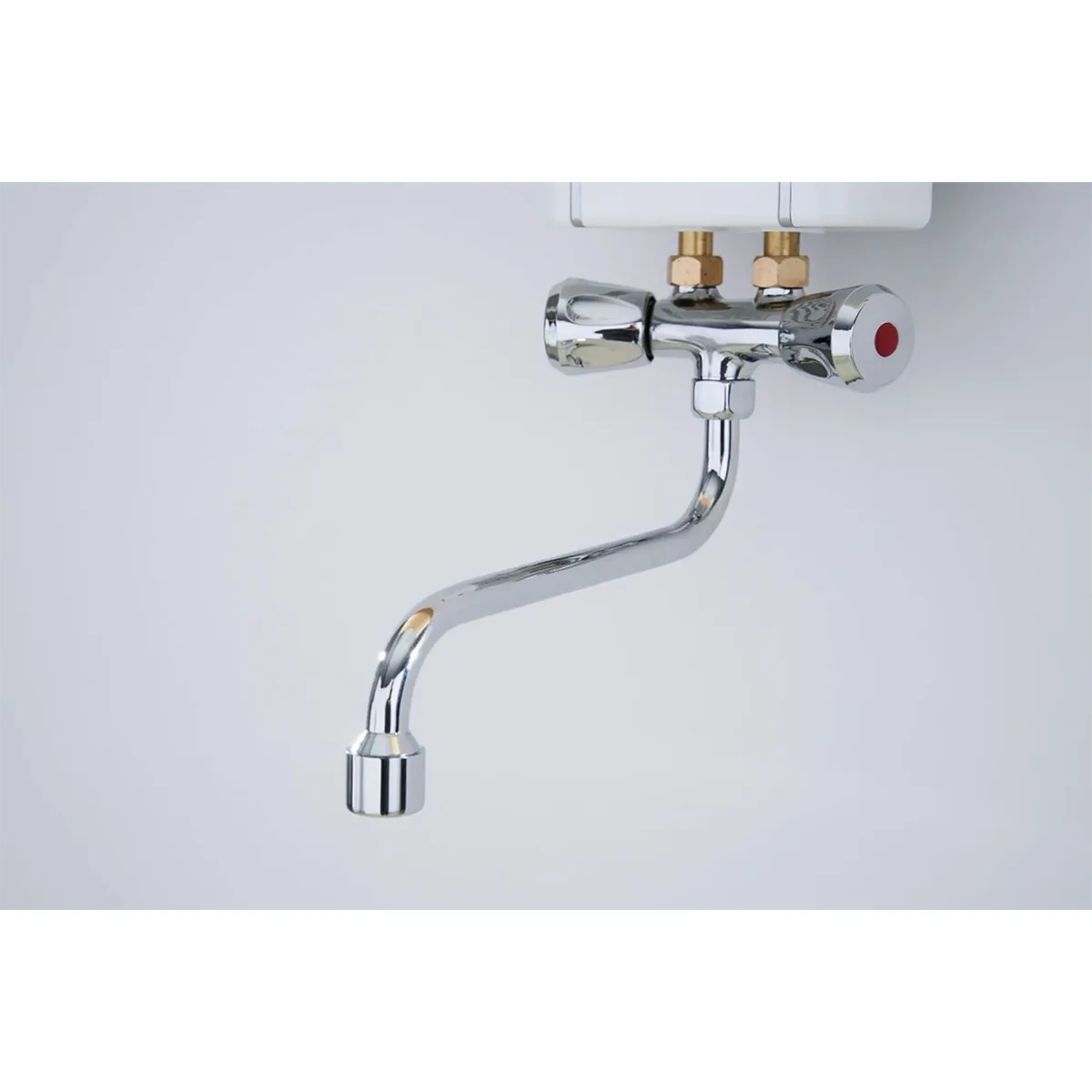

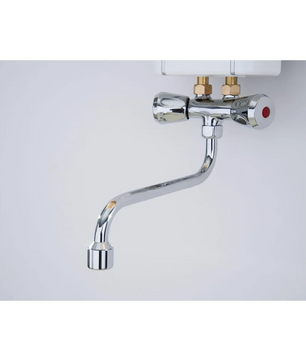

Low-pressure fitting (chrome)
Assembly instructions
